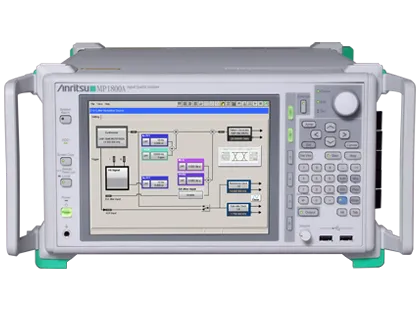

Anritsu MU183020A 28G/32G Pulse Pattern Module
Request a quote
Anritsu MU183020A is a plug-in Pulse Pattern Generator module for the MP1800A Signal Quality Analyzer supporting bit rates from 2.4 to 32.1 Gbit/s with output up to 3.5 Vp-p.
Product details
| Model | MU183020A |
| Manufacturer | Anritsu |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Anritsu MU183020A is a 28G/32G Pulse Pattern Generator module designed for use with the MP1800A Signal Quality Analyzer. This modular plug-in component generates high-quality test signals for bit error rate testing and signal integrity analysis across a wide range of bit rates and applications, from 100 GbE to next-generation optical and electrical interfaces.
Key Features
- Bit rate support: 2.4 Gbit/s to 28.1 Gbit/s (up to 32.1 Gbit/s with MU183020A-001 option)
- High-quality waveform with 12 ps rise/fall time
- Low-jitter output: 8 ps peak-to-peak
- Maximum output amplitude: 0.5 Vp-p to 3.5 Vp-p (depending on configuration)
- Configurable 2-channel (Data/xData) or 4-channel output options
- Supports high-amplitude modulation (EA, EML modulators)
- IEEE and ITU-T burst pattern generation for PON testing
Applications
- 100 GbE (25Gx4) interface testing
- OTU-4 (28Gx4) optical transport testing
- 32G DP-QPSK and 32G Fibre Channel measurements
- InfiniBand EDR (26G) validation
- CEI-28G signal integrity analysis
- E-PON, G-PON, and 10GE-PON module evaluation
Specifications
| Features | Parameters |
| Number of Slot | 6 slots |
| LCD Display | 8.4-inch Color TFT, 800×600 pixels |
| Peripheral Interface | VGA out (SVGA), USB 1.1 (3 ports) |
| Remote Interface | GPIB [MP1800A-001], LAN (2 ports) [MP1800A-002] |
| Dimensions and Mass | 320 (W) × 177 (H) × 450 (D) mm ≤13 kg (without modules) |
| Model / Option | MU183020A (No Option)MU183020A-001 |
| Operation Bit-Rate | 2.4 Gbit/s to 28.1 Gbit/s2.4 Gbit/s to 32.1 Gbit/s |
| Model No | MU183020A-012MU183020A-013MU183020A-022MU183020A-023 |
| Number of Output | 2 (Data, xData)2 (Data, xData)4 (Data1, xData1, Data2, xData2)4 (Data1, xData1, Data2, xData2) |
| Amplitude/Output Level | 0.5 Vp-p to 2.0 Vp-p0.5 Vp-p to 3.5 Vp-p0.5 Vp-p to 2.0 Vp-p0.5 Vp-p to 3.5 Vp-p |
