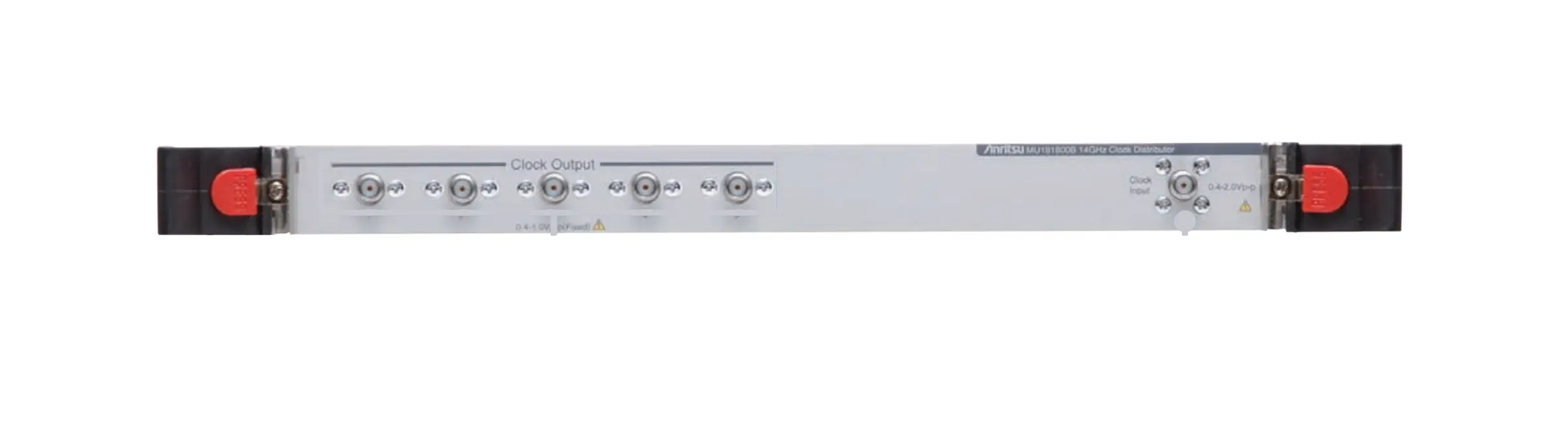

Anritsu MU181800B 14 GHz Clock Distributor
Request a quote
Anritsu MU181800B is a single-card clock distribution unit delivering five synchronized outputs at frequencies from 0.1 to 14 GHz with channel skew ≤10 ps.
Product details
| Model | MU181800B |
| Manufacturer | Anritsu |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Anritsu MU181800B is a single-card clock distribution unit designed for delivering five synchronized outputs from a single input signal. It operates across a frequency range of 0.1 to 14 GHz, making it suitable for a wide range of test and measurement applications requiring clock distribution in high-speed communication systems.
Key Features
- Frequency range: 0.1 GHz to 14 GHz (14.1 GHz with option MU181800B-005)
- 5 single-ended clock outputs with SMA connectors
- Clock input level: 0.4 Vp-p to 2.0 Vp-p (square wave or sine wave)
- Output level: 0.4 Vp-p (minimum) to 1.0 Vp-p (maximum)
- Output duty cycle: 50 ±10%
- Channel skew: ≤10 ps at 14 GHz
- 50Ω terminated SMA connectors
Applications
- High-speed signal distribution in test equipment
- Clock synchronization for multi-channel measurements
- Signal integrity testing systems
- Communication system validation
Specifications
| Features | Parameters |
| Model / Order Number | Description |
| MU181800B | 14 GHz Clock Distributor |
| Feature | Parameters |
