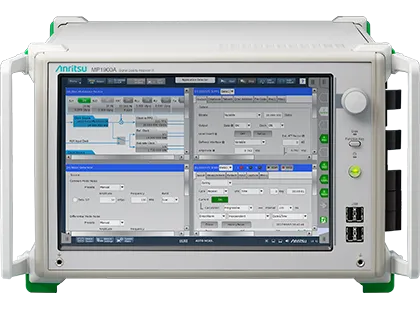

Anritsu MP1900A Signal Quality Analyzer-R
Request a quote
Anritsu MP1900A modular BERT supporting PAM4 and NRZ signals up to 64.2 Gbaud with 512 Gbit/s transmission capacity and comprehensive measurements.
Product details
| Model | MP1900A |
| Manufacturer | Anritsu |
| Category | Bit Error Rate Testing |
| Availability | Made to order |
Description
Overview
The Anritsu MP1900A Signal Quality Analyzer-R is a modular, 8-slot BERT platform supporting comprehensive physical-layer measurements for next-generation network interfaces including PAM4 and NRZ signals, as well as high-speed serial bus interfaces such as PCIe, USB, and Thunderbolt. With a maximum transmission capacity of 512 Gbit/s and baud rates up to 64.2 Gbaud, it enables all-in-one testing for 100/200/400/800 GbE networks and advanced serial standards.
Key Features
- PAM4 PPG/ED modules with baud rates from 2.4 to 64.2 Gbaud
- 512 Gbit/s maximum transmission capacity with 4-channel PAM4/NRZ scalability
- High-speed rise/fall times of 8.5 ps (20-80%) and intrinsic jitter of 170 fs rms typical
- 32 Gbit/s wideband SI PPG/ED modules for NRZ/PAM4 support
- 10-tap emphasis with variable ISI function
- Multi-band CTLE for 8, 16, and 28 Gbit/s bandwidths
- Low intrinsic jitter of 115 fs rms typical
- Comprehensive jitter and noise injection for tolerance measurements
- PCIe and USB link training and LTSSM analysis capability
Applications
- Next-generation Ethernet testing (100/200/400/800 GbE)
- PCI Express and USB high-speed serial bus validation
- Optical module and SERDES characterization
- Signal integrity and jitter tolerance measurements
- Thunderbolt and high-speed interconnect evaluation
Specifications
| PAM4 Test Solution | 512 Gbit/s max. transmission capacity PAM4 PPG/ED (MU196020A/MU196040A): Baud rate of 2.4 to 64.2 Gbaud*¹ Multichannel Scalability 4ch PAM4/NRZ NEW High-speed Tr/Tf of 8.5 ps (20 to 80%) Low Intrinsic Jitter output of random Jitter 170 fs rms (typ.) Low noise and low distortion high-quality data output 4Tap Emphasis (20-dB Range) ISI adjustment function NEW FEC pattern generation NEW Stressed margin BER < E-12*² Built-in Clock Recovery PAM4 pattern editor and symbol error measurement Jitter Addition, Jitter Tolerance measurement functions (SJ/RJ/BUJ/SSC) Voltage Noise Addition function (Common/Differential/White Noise) Jitter Tolerance measurement using DUT BER counter function NEW |
| Feature | Parameter |
| LCD | 12.1-inch, WXGA 1280 x 800 |
| Remote Interface | GPIB, LAN |
| Module Slots | 8 |
| External Peripheral I/F | USB x6, VGA x1, HDMI x1 |
| OS | Windows Embedded Standard 7 |
| Power | 100V(ac) to 120V(ac)/200V(ac) to 240 V(ac) 50 Hz to60 Hz |
| Power Consumption | 1350 VA max. |
| Dimensions/Mass | 340 (W) x 222.5 (H) x 451 (D) mm / 20 kg max. (excluding modules) |
| Model / Order Number | Description |
