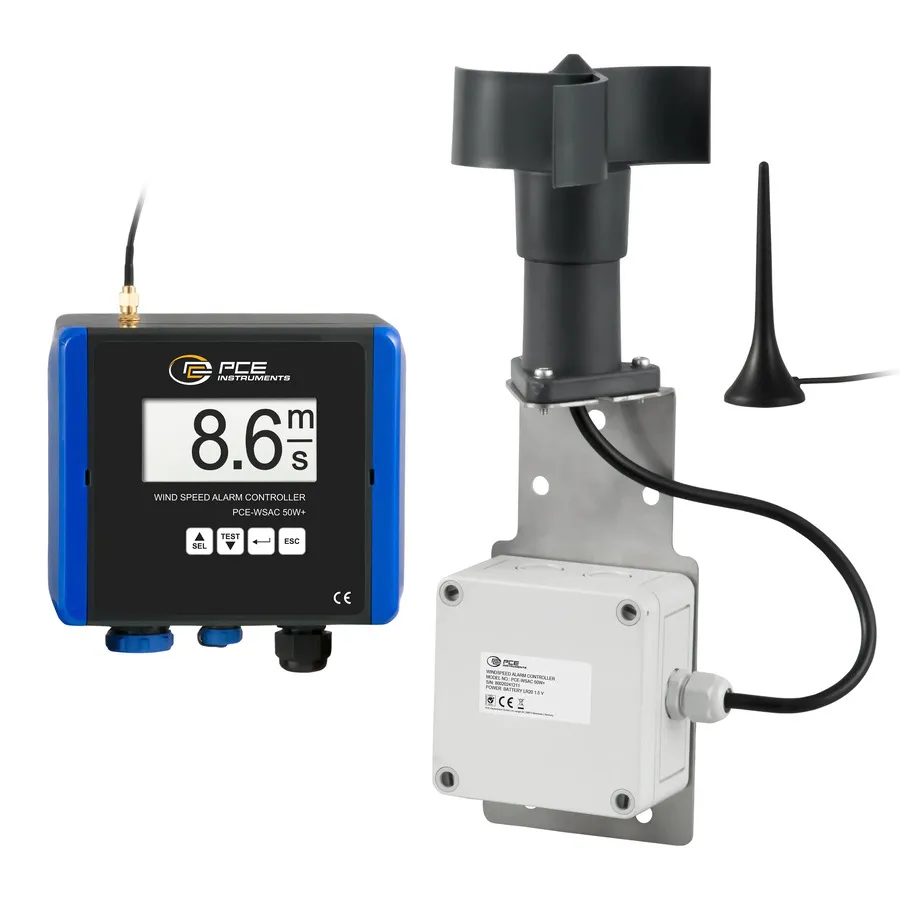

PCE Instruments PCE-WSAC 50W 230 Wind Speed Alarm Controller
Request a quote
PCE Instruments PCE-WSAC 50W 230 wireless wind speed controller with 128x64 LCD, 30,000-record data logger, and 750m radio range for crane and turbine monitoring.
Product details
| Model | PCE-WSAC 50W 230 |
| Manufacturer | PCE Instruments |
| Category | Airflow Meters |
| Availability | Made to order |
Description
Overview
The PCE-WSAC 50W 230 is a wireless wind speed alarm controller designed to measure and monitor wind loads on cranes and wind turbines. It features a 128x64 pixel LCD display, 4-20mA analog output, and integrated data logging for up to 30,000 records. Operating over 2.4 GHz radio frequency with a range of 750m in open field conditions, it provides reliable real-time wind speed monitoring.
Key Features
- Wireless transmission at 2.4 GHz with 750m open field range
- 128x64 pixel LCD display with km/h, mph, m/s units
- Measurement range up to 180 km/h (50 m/s)
- 4-20mA analog output for system integration
- Alarm relay with pre-alarm and main alarm functions
- Data logger for 30,000 records
- Durable stainless steel ball bearings
- Operating temperature range -20°C to +70°C
Applications
- Wind load monitoring on cranes and hoists
- Wind turbine commissioning and operation
- Pre-commissioning wind analysis
- Industrial facility wind control
- Mine ventilation monitoring
Included Accessories
- Wind speed sensor with standard bracket
- Self-leveling mounting bracket
- Radio antenna
- D-size 1.5V DC battery
- User manual
Specifications
| Series | WSAC Series |
| Accuracy | +/- 0.3% |
| Display Type | LCD |
| IO Interface | RS485 |
| Power Source | 110 - 230V, 1 x 1,5 V D battery |
