Preen AFV-S-5000 AC Power Source
Request a quote
Preen AFV-S-5000 is a programmable 5000VA AC power source with 0-310V output, 40-500Hz frequency range, and less than 0.3% THD.
Product details
| Model | AFV-S-5000 |
| Manufacturer | Preen |
| Category | AC Power Sources |
| Availability | Made to order |
Description
Overview

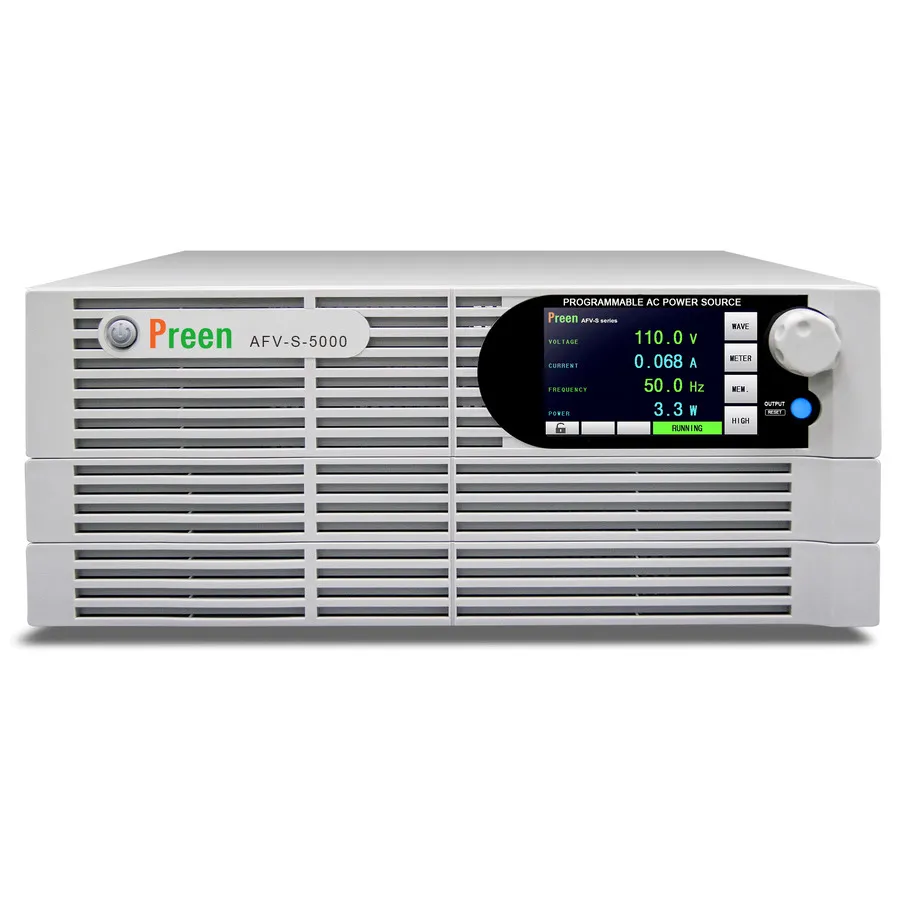

The Preen AFV-S-5000 is a compact, programmable AC power source housed in a 4U form factor. It delivers precise voltage and frequency control with minimal harmonic distortion, making it ideal for high-power equipment testing, validation, and automation applications.
Key Features
- Output power: 5000VA
- Output voltage: 0-310V adjustable
- Output frequency: 40-500Hz programmable
- THD less than 0.3% at frequencies below 100Hz
- Inrush current capability: up to 4x peak current from RMS current
- 5-inch touch panel and rotary knob controls
- Waveform display and real-time measurement display
- Multiple communication interfaces: RS232, RS485, optional Ethernet, USB, Analog
- 20 memory sets with 4 shortcuts for easy parameter recall
- Control software for remote operation and report export
Applications
- Home appliance testing and certification
- Power connector validation
- LED lighting product testing
- Manufacturing automation testing
- Laboratory equipment testing
- Equipment Under Test (EUT) performance analysis
Included Accessories
- AFV-S-5000 Programmable AC Power Source
Specifications
| Power Rating | 5 kVA |
| Phase | 1P |
| Output Voltage | 310 V |
| Output Current | 40 A |
| Series | AFV-S Series |
| Frequency Range | 40-500 Hz |
| Interface | RS-232, RS-488 |
| Number of Outputs | 1 Output |
| Programmable | Yes |
| Type | AC |
