Preen AFV-33060 AC Power Source
Request a quote
Preen AFV-33060 — 60kVA programmable AC power source with 45-500Hz frequency range, 310V/166.7A per phase, and remote control for industrial testing applications.
Product details
| Model | AFV-33060 |
| Manufacturer | Preen |
| Category | AC Power Sources |
| Availability | Made to order |
Description
Overview

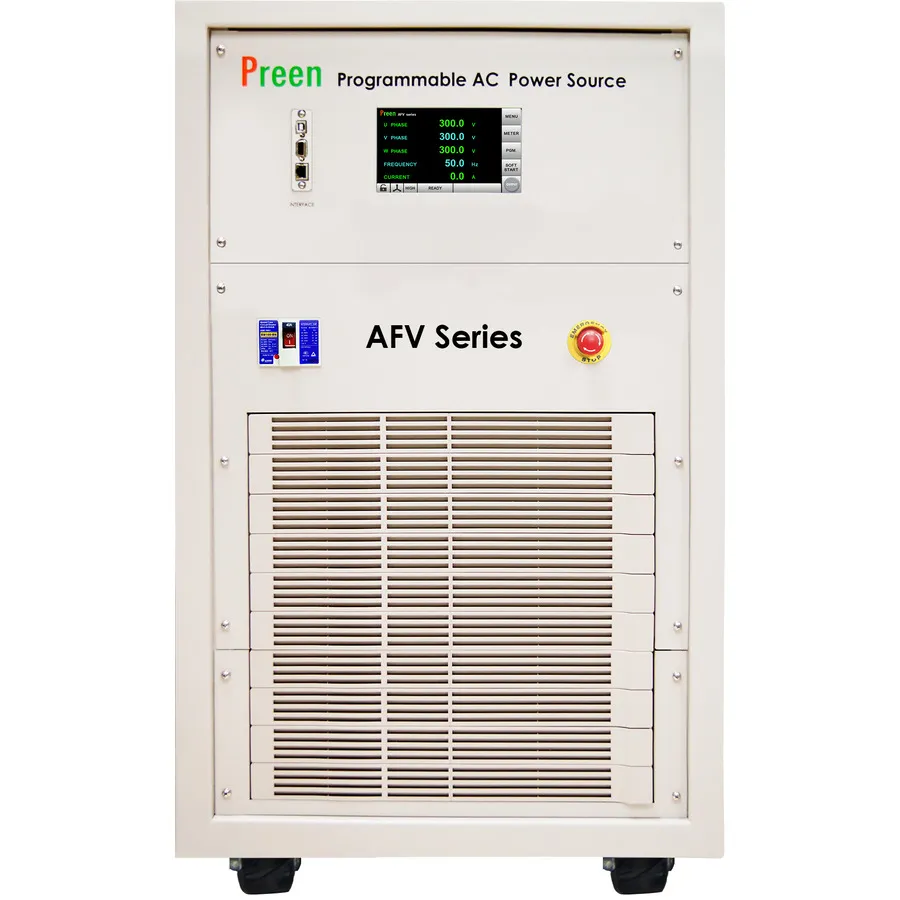

The Preen AFV-33060 is a programmable AC power source delivering 60kVA of output power at 310V, three-phase configuration. It is designed for industrial testing applications where precise simulation of standard and abnormal power conditions is required.
Key Features
- Output: 60kVA, 310V, 166.7A per phase, three-phase
- Frequency range: 45-500Hz with precise control
- STEP and GRADUAL programming modes for automated test sequences
- Touch screen interface for easy operation and monitoring
- Optional soft start to reduce inrush current
- Optional independent three-phase voltage control
- Comprehensive protection: 20+ fault codes and event logging
- Standard RS485, optional RS232 and GPIB interfaces
- Modular power design for compact size and easy maintenance
- CE marked with high electromagnetic compatibility
Applications
- Home appliance and electrical equipment testing
- Electronic equipment compliance and R&D testing
- Motor and electric drive performance validation
- Medical device power supply verification
- Industrial lighting and power quality simulation
Specifications
| Power Rating | 60 kVA |
| Phase | 3P |
| Output Voltage | 310 V |
| Output Current | 166.7 A |
| Series | AFV Series |
| Display Type | 7 TFT LCD Touch |
| Frequency Range | 45-500 Hz |
| Input Voltage | 380 VAC |
| Interface | RS-232/RS-485/Ethernet |
| Number of Outputs | 3 Output |
| Programmable | Yes |
| Type | AC |
