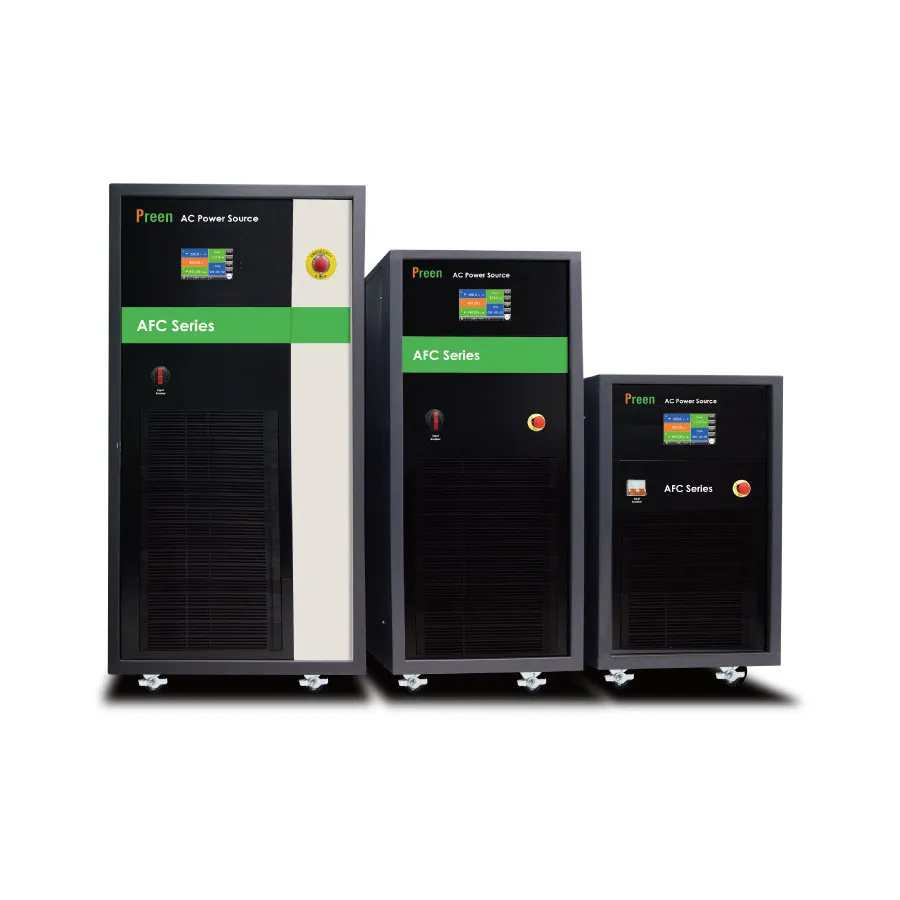

Preen AFC-33010 AC Power Source

Overview

The Preen AFC-33010 is a 10kVA AC power source designed to provide clean sine wave AC power for simulating utility grid voltage and frequency conditions. It allows users to test export products and operate imported equipment across various voltage and frequency standards. The unit features a modern design with a 7-inch touch screen interface and dual communication protocols for intuitive control and monitoring.

Key Features

• 10kVA three-phase output power with 310V maximum voltage
• Output current: 27.8A at rated power
• Frequency range: 45-65Hz continuously adjustable, 400Hz fixed option available
• PWM high-frequency switching technology for pure sine wave generation
• 7-inch LCD touch screen display showing voltage, current, frequency, active power, apparent power, and power factor
• CE and RoHS certified with excellent safety and electromagnetic compatibility
• High input power factor with efficiency up to 92% at full load
• Modularized inverter design for compact form factor and easy maintenance
• Comprehensive protections: overvoltage, overcurrent, overload, input under-voltage, overheat with alarm and fault codes
• Emergency stop button for immediate output shutdown
• RS-232 and RS-485 serial interfaces for remote control

Applications

• Product testing and certification for export compliance
• Operation of equipment designed for foreign voltage/frequency standards
• Home appliance and electrical equipment testing
• Medical device validation
• Lighting and electronics R&D
• Production line testing and quality assurance
