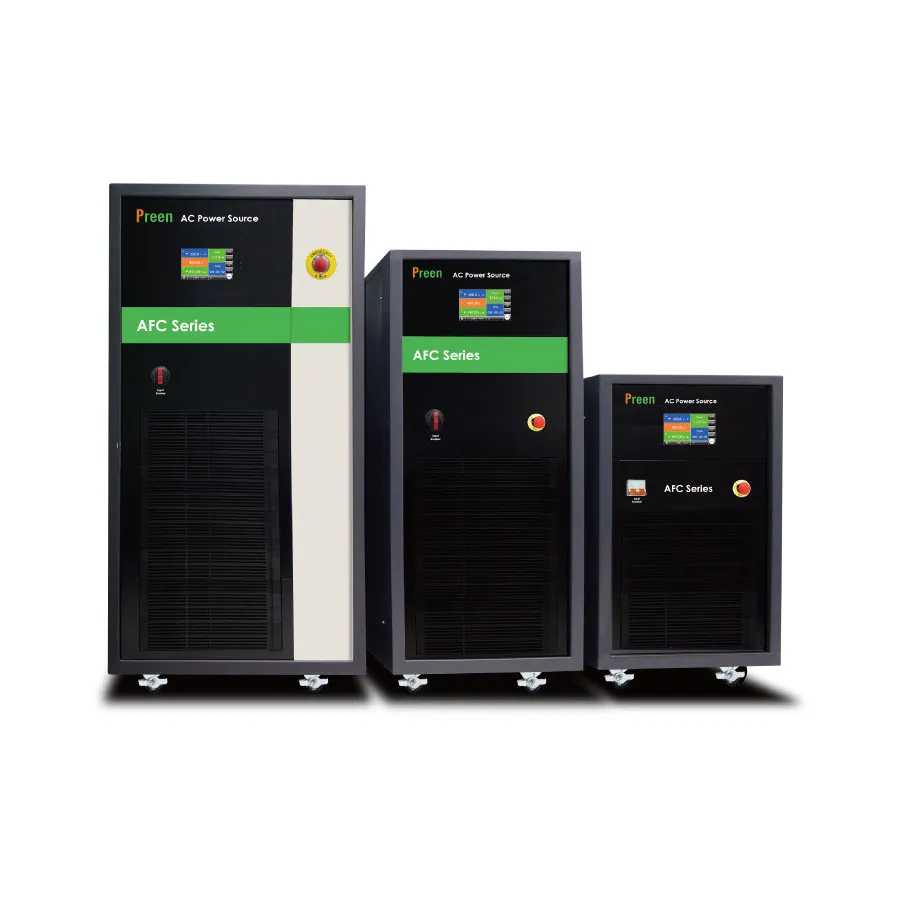

Preen AFC-31060 AC Power Source
Request a quote
Preen AFC-31060 is a 60kVA AC power source with 0-310V output, 45-65Hz frequency range, and pure sine wave generation for utility grid simulation testing.
Product details
| Model | AFC-31060 |
| Manufacturer | Preen |
| Category | AC Power Sources |
| Availability | Made to order |
Description
Overview
The Preen AFC-31060 AC Power Source is a 60kVA unit designed to simulate utility grid voltage and frequency conditions for equipment testing. It features a 7-inch touch screen interface with RS-232 and RS-485 communication capabilities. The system is suitable for testing and validating home appliances, electronics, medical equipment, and lighting products across manufacturing and R&D operations.
Key Features
- 60 kVA output power
- Output voltage range: 0-310V
- Output current: 500A
- Frequency range: 45-65Hz continuously adjustable, 400Hz fixed option
- 3-phase input, single-phase output configuration
- 7-inch LCD touch screen with real-time measurements (voltage, current, frequency, power factor)
- Pure sine wave output via PWM high-frequency switching technology
- CE & RoHS certified with excellent electromagnetic compatibility
- High efficiency up to 92% at full load
- Comprehensive protection: overvoltage, overcurrent, overload, input undervoltage, overheat with fault codes and buzzer alarm
- Emergency stop button for immediate output shutdown
Applications
- Home appliance testing and simulation
- Electronic equipment validation
- Medical device testing
- Lighting product testing
- Export product testing for different utility grid conditions
- Production and R&D validation of imported equipment
Specifications
| Power Rating | 60 kVA |
| Phase | 3P/1P |
| Output Voltage | 310 V |
| Output Current | 500 A |
| Series | AFC Series |
| Display Type | 7 LCD Touch |
| Frequency Range | 45-65 Hz |
| Input Voltage | 380 VAC |
| Interface | RS-232/RS-485 |
| Number of Outputs | 1 Output |
| Programmable | Yes |
| Type | AC |
