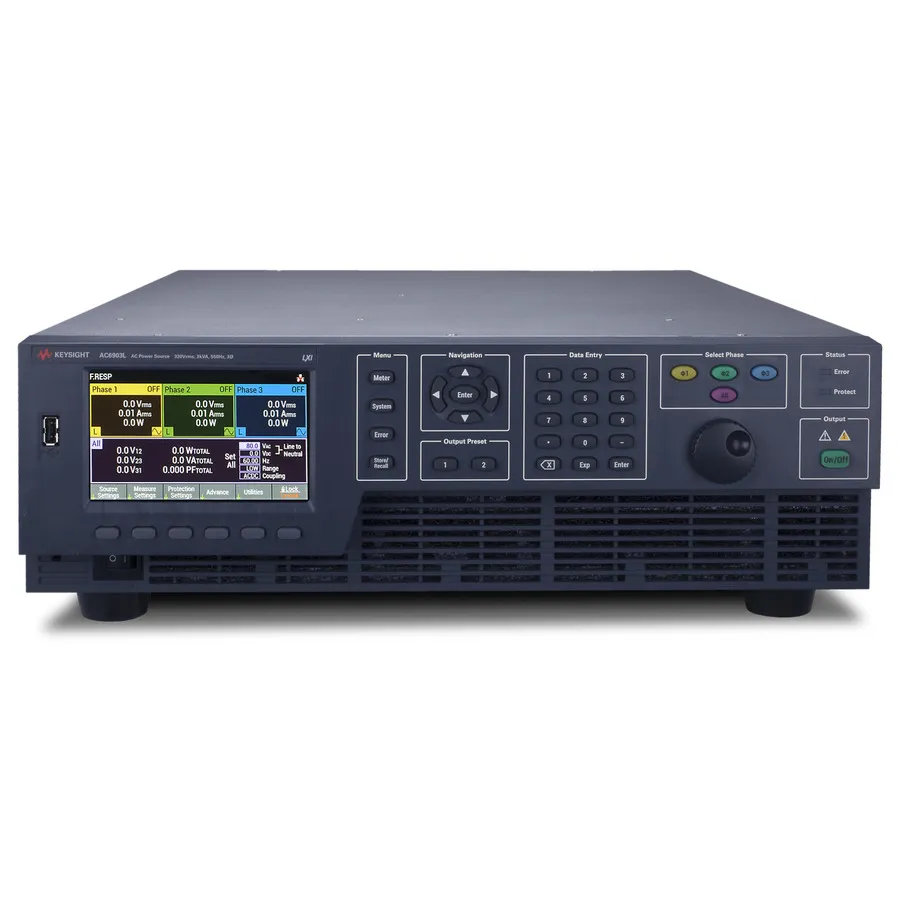

Keysight AC6903L Three-Phase AC Power Source

Overview

The Keysight AC6903L is a three-phase AC power source from the AC6900 Series, offering 3 kVA power capacity with rms voltages up to 320 V. The instrument operates in AC, DC, or AC plus DC mode for versatile testing scenarios. It features frequency capability up to 550 Hz, built-in tests for power line disturbance and output sequencing, harmonic analysis capabilities, and waveform generation. The AC6903L is particularly suited for avionics equipment testing and pre-compliance validation.

Key Features

• 3 kVA total power capacity (single-phase or three-phase)
• Maximum AC voltage: 320 Vrms
• Maximum DC voltage: 452 V
• Frequency range: DC to 550 Hz
• Maximum rms current: 30 A / 15 A (single-phase); 10 A / 5 A (three-phase)
• Single, two, and three-wire connection options
• Built-in waveform generation and power line disturbance simulation
• Harmonic analysis with amplitude and phase measurement up to 50th harmonic
• Total harmonic distortion (THD) measurement
• Precision measurements: AC, DC, AC plus DC voltage and current
• Output inhibit programming and soft start/stop functions
• Overcurrent, overvoltage, and overtemperature protection
• 5-inch LCD color display with simultaneous three-phase measurements
• Multiple connectivity: LXI-LAN, USB, and optional GPIB

Applications

• Avionics equipment and electronic systems testing
• Automatic test equipment (ATE) and test station operations
• Pre-compliance testing for commercial and military standards
• Air traffic control system validation
• Unmanned aircraft systems testing
• AC/DC power adapter and power supply testing
• Relay, transformer, and power component verification
• AC motor and electronic controller testing
