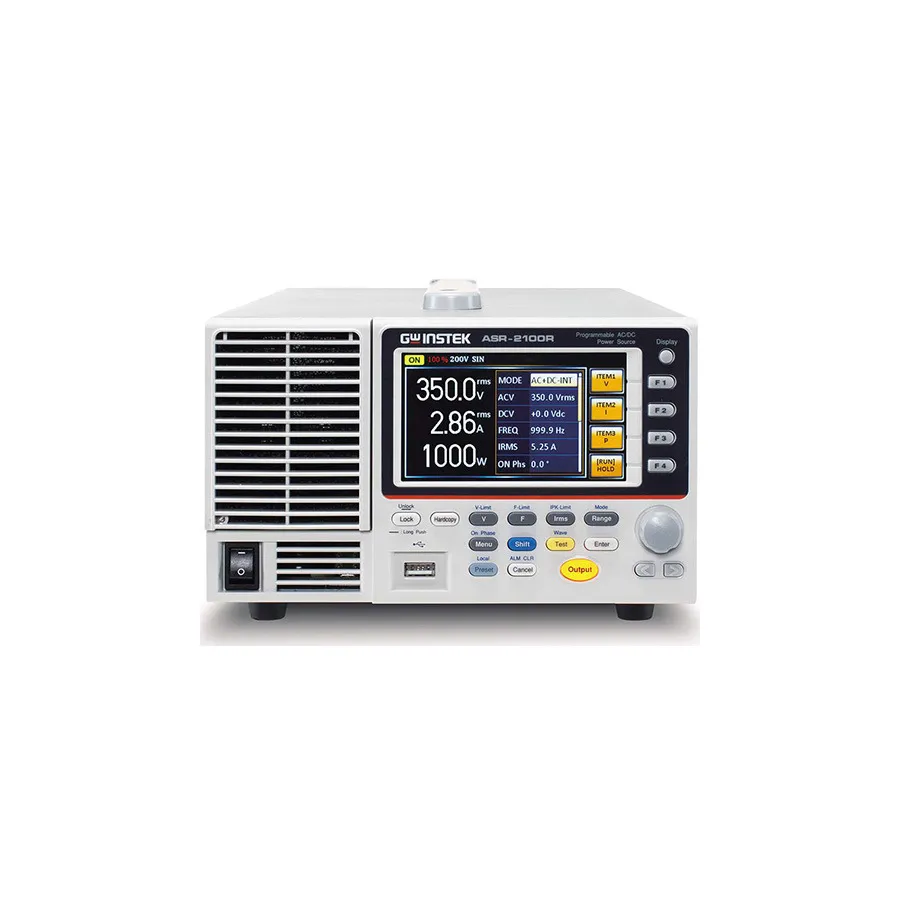

GW Instek ASR-2100R Programmable AC/DC Source
Request a quote
GW Instek ASR-2100R is a 1000VA programmable AC/DC power source in 3U 1/2 rack-mount form factor with AC 0-350Vrms, DC ±500V output and USB, LAN, RS-232 connectivity.
Product details
| Model | ASR-2100R |
| Manufacturer | GW Instek |
| Category | AC Power Sources |
| Availability | Made to order |
Description
Overview
The GW Instek ASR-2100R is a programmable 1000VA AC/DC power source in 3U 1/2 rack-mount form factor for system integration and test applications. It provides both AC and DC rated power output with nine operational modes, including pure AC, pure DC, combined AC+DC, and external signal control/synchronization modes.
Key Features
- 1000VA power output with AC 0-350Vrms and DC 0-±500V capability
- 3U 1/2 rack-mount design for cabinet integration
- Nine operational modes: AC-INT, DC-INT, AC+DC-INT, AC-EXT, AC+DC-EXT, AC-ADD, AC+DC-ADD, AC-SYNC, AC+DC-SYNC
- Output frequency up to 999.9 Hz
- Remote sensing for accurate voltage output
- Connectivity: USB, LAN, RS-232
- Customized phase angle control for output on/off
- Sequence and simulation modes for power anomaly testing (sags, surges, outages)
- Comprehensive measurements: Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, P, S, Q, PF, CF, harmonic analysis
- Memory and sequencing functions (up to 10 sets)
- Built-in protections: OVP, OCP, OPP, OTP, Fan fail and AC fail alarms
Applications
- Electronic component and device development and testing
- Automotive electrical equipment testing
- Home appliance testing
- Power supply and device qualification
- Rack-mount test systems and ATE integration
Specifications
| Maximum AC Voltage | 350 V |
| Maximum DC Voltage | 500 V |
| Maximum AC Current | 10 A |
| Maximum DC Current | 10 A |
| Number of Phases | 1 |
| Series | ASR-2000 Series |
| Display | 4" TFT LCD |
| Interface | USB, LAN, RS-232 |
| Programmable | Yes |
