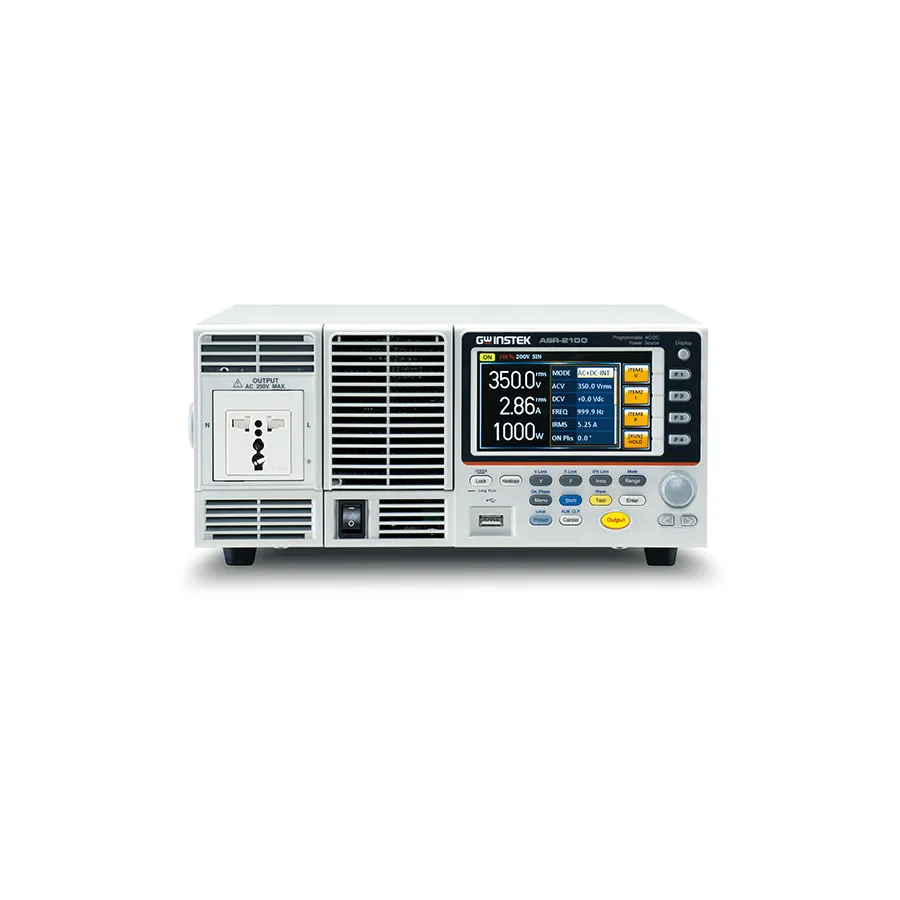

GW Instek ASR-2100 GPIB Programmable AC/DC Source
Request a quote
GW Instek ASR-2100 GPIB Programmable AC/DC source provides 1000VA output with AC 0-350Vrms and DC ±500V, featuring GPIB, USB, LAN, and RS-232 connectivity.
Product details
| Model | ASR-2100 GPIB |
| Manufacturer | GW Instek |
| Category | AC Power Sources |
| Availability | Made to order |
Description
Overview
The GW Instek ASR-2100 GPIB is a programmable 1000VA AC/DC power source with GPIB interface for system integration and desktop test applications. It provides both AC and DC rated power output with nine operational modes, including pure AC, pure DC, combined AC+DC, and external signal control/synchronization modes.
Key Features
- 1000VA power output with AC 0-350Vrms and DC 0-±500V capability
- Nine operational modes: AC-INT, DC-INT, AC+DC-INT, AC-EXT, AC+DC-EXT, AC-ADD, AC+DC-ADD, AC-SYNC, AC+DC-SYNC
- Output frequency up to 999.9 Hz
- Remote sensing for accurate voltage output
- Connectivity: USB, LAN, RS-232, GPIB
- Customized phase angle control for output on/off
- Sequence and simulation modes for power anomaly testing (sags, surges, outages)
- Comprehensive measurements: Vrms, Vavg, Vpeak, Irms, Iavg, Ipeak, P, S, Q, PF, CF, harmonic analysis
- Memory and sequencing functions (up to 10 sets)
- Built-in protections: OVP, OCP, OPP, OTP, Fan fail and AC fail alarms
Applications
- Electronic component and device development and testing
- Automotive electrical equipment testing
- Home appliance testing
- Power supply and device qualification
Specifications
| Maximum AC Voltage | 350 V |
| Maximum DC Voltage | 500 V |
| Maximum AC Current | 10 A |
| Maximum DC Current | 10 A |
| Number of Phases | 1 |
| Series | ASR-2000 Series |
| Display | 4" TFT LCD |
| Interface | USB, LAN, RS-232, GPIB |
| Programmable | Yes |
