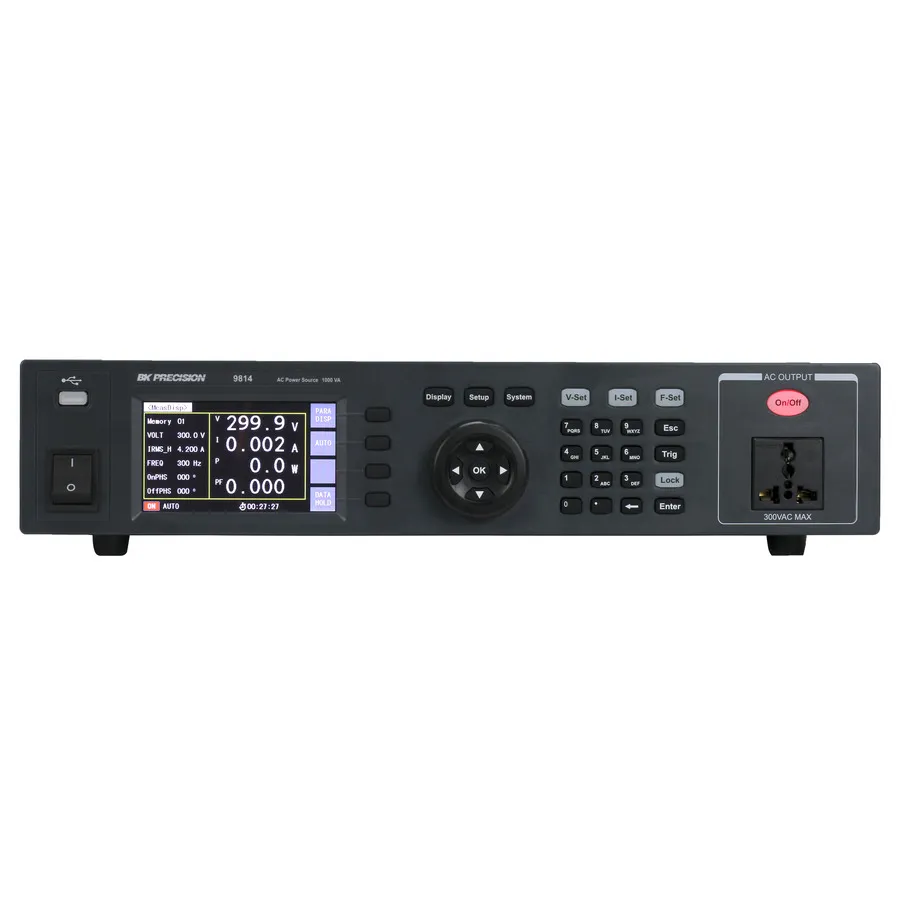

B&K Precision 9814-220V Programmable AC Power Source
Request a quote
B&K Precision 9814-220V is a 1000VA programmable AC power source with 0–300V output, adjustable 45–500Hz frequency, and advanced list-mode programming for testing and pre-compliance applications.
Product details
| Model | 9814-220V |
| Manufacturer | B&K Precision |
| Category | AC Power Sources |
| Availability | Made to order |
Description
Overview
The B&K Precision 9814-220V is a programmable AC power source delivering 1000VA of power with output voltage adjustable from 0 to 300V and frequency adjustable from 45 to 500Hz. It features advanced list mode programming for up to 50 programs with 9 steps per program, allowing users to create complex test scenarios and simulate common power grid faults and disturbances.
Key Features
- 1000 VA output power (220VAC input)
- Output voltage: 0 to 300 V with 0.1 V resolution
- Output frequency: 45 Hz to 500 Hz adjustable
- Advanced list mode programming: up to 50 programs with 9 steps per program
- Surge/dropout function for simulating power grid faults
- Displays Vrms, Irms, Ipeak, frequency, power factor, crest factor, and elapsed time measurements
- Comprehensive protection: overvoltage (OVP), overcurrent (OCP), overpower (OPP), overtemperature (OTP)
- 24-bit color 4.3" LCD screen
- Dimmer simulation with 0-180 degree phase cut-off control
- USB (VCOM) and RS232 interfaces
- Pre-compliance testing for voltage dips and frequency simulations per IEC61000-4-11/4-14/4-28
Applications
- Pre-compliance and EMC testing
- Power grid fault and disturbance simulation
- Motor control and lighting system testing
- Device validation and stress testing
Included Accessories
- Unterminated power cord with ring terminals
- Certificate of calibration
Specifications
| Power Rating | 1 kVA |
| Phase | 1P |
| Output Voltage | 300 V |
| Output Current | 16 A |
| Series | 9810 Series |
| Display Type | 4.3 Color LCD |
| Frequency Range | 45-500 Hz |
| Includes | Terminated power cord with NEMA 5-15P (9812 Only), Unterminated power cord with ring terminals (9812-220V and 9814-220V), Certificate of Calibration |
| Input Voltage | 220 VAC |
| Interface | RS-232, USB VCOM, USB Host |
| Number of Outputs | 1 Output |
| Programmable | Yes |
| Type | AC |
| Warranty | 3 Years |
