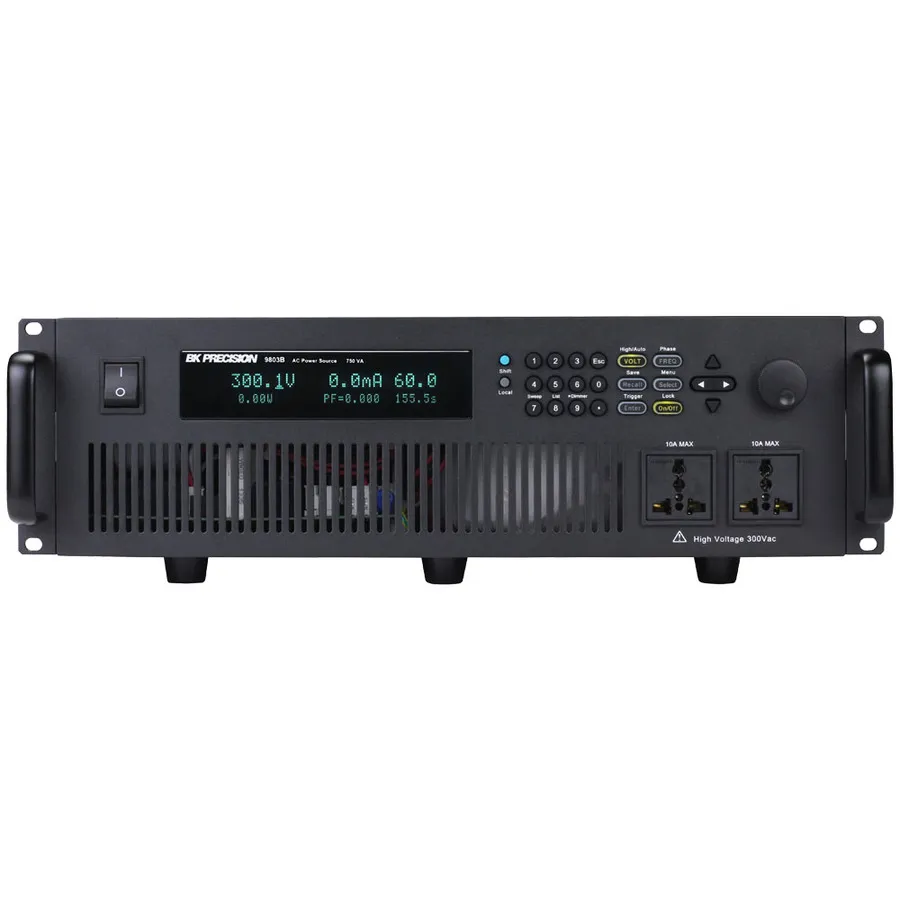

B&K Precision 9803B Programmable AC Power Source

Overview

The B&K Precision 9803B is a fully programmable linear AC power source and measurement tool in a compact benchtop package. This model delivers up to 750 VA and combines flexible output control with comprehensive measurement capabilities. The output voltage ranges from 0 to 300 V with 0.1 V resolution, with a maximum current of 6 A, and the frequency is adjustable from 45 Hz to 500 Hz. Unlike the standard 9803, the 9803B does not include GPIB interface support.

Key Features

• Maximum output power: 750 VA
• Output voltage range: 0 to 300V with 0.1V resolution
• Maximum current: 6 A
• Adjustable frequency: 45 Hz to 500 Hz
• VFD display showing Vrms, Irms, Ipeak, frequency, PF, apparent power, true power, and elapsed output time
• Adjustable phase angle control (0 to 360 degrees)
• Built-in power line disturbance (PLD) simulator and dimmer function
• Voltage and frequency sweep modes
• USB (USBTMC-compliant), RS232, and LAN interfaces
• LabVIEW driver and soft panel software for remote control
• Pre-compliance testing for IEC61000-4-11/4-14/4-28 standards

Applications

• Evaluating transformers, TRIACs, SCRs, and passive components
• Production, R&D, and service testing
• Pre-compliance testing
• Motor and LED testing with dimmer simulation

Included Accessories

• Unterminated power cord with input connector
• Rackmount ears and handles
• Instruction manual
• Test report and certificate of calibration
